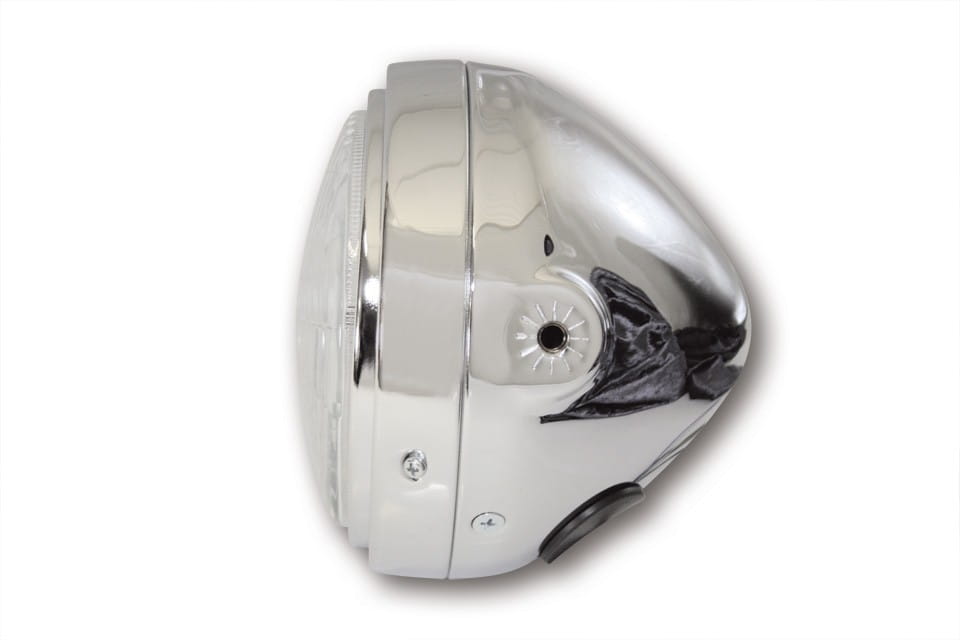

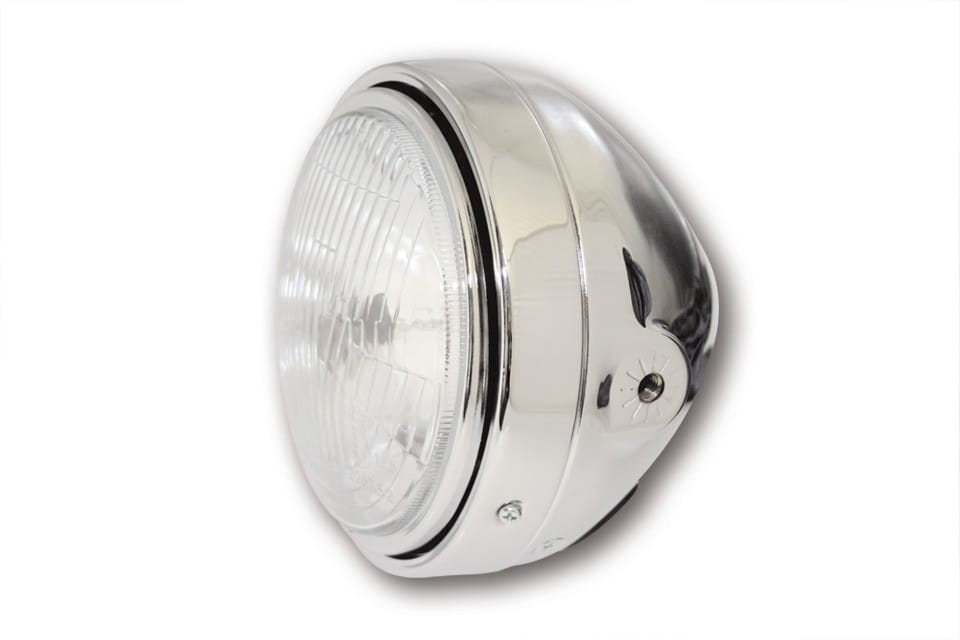

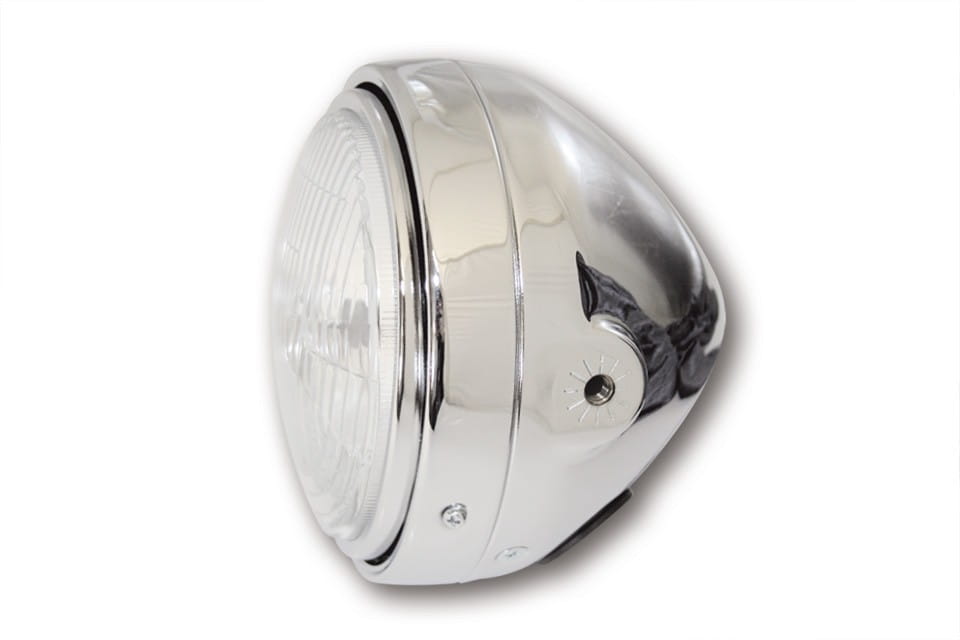

SHIN YO 5 3/4″ headlight with sidelight for side mounting,
H4 headlight in metal housing with adjustable inner ring and ribbed glass. The headlighthas an asymmetrical reflector and parking light, approved for right-hand traffic only, E-examined.
Dimensions:
Casing diameter: 165 mm
Total depth including curved glass: 145mm
Fixing: lateral mounting M8
Housing depth: approx. 75 mm (centre of lateral fixing holes to the rear).
Lamps: H4, 12V 60/55 W
Connections:
Black cable = ground Standlight(-)
Brown cable = Parking light (+)
White cable = Low beam (+)
Blue cable = High beam (+)
Green cable = Ground (-)
Scope supplied: 1 unit consisting of headlight andLight source
Spare parts:
Spare insert: Item no. 226-130
Spare bulb: 209-101 & 209-105
Notes: Asymmetrical reflectors are only permitted for right-hand traffic.
