Reflektor FRAME 7' LED adaptacyjny - boczne mocowania typ 3 Highsider Adaptive Headlight

DUŻY I NOWOCZESNY LEDOWY REFLEKTOR 7 CALI
KOLOR:CZARNY
MOCOWANIE: BOCZNE

Reflektor przedni HIGHSIDER LED FRAME z homologacją europejską

Możliwy montaż BEZ obudowy !

Niezastąpiony w projektach gdzie liczy się każdy centymetr, zwłaszcza przy użyciu widelca typu Up Side Down. Szczególnie właściciele Ducati będą z tego zadowoleni (w tych  motocyklach lagi są bardzo blisko główki ramy) .

REDUKCJA NA MAXA była założeniem przy opracowywaniu innowacyjnego mocowania reflektora FRAME.


Fakty:

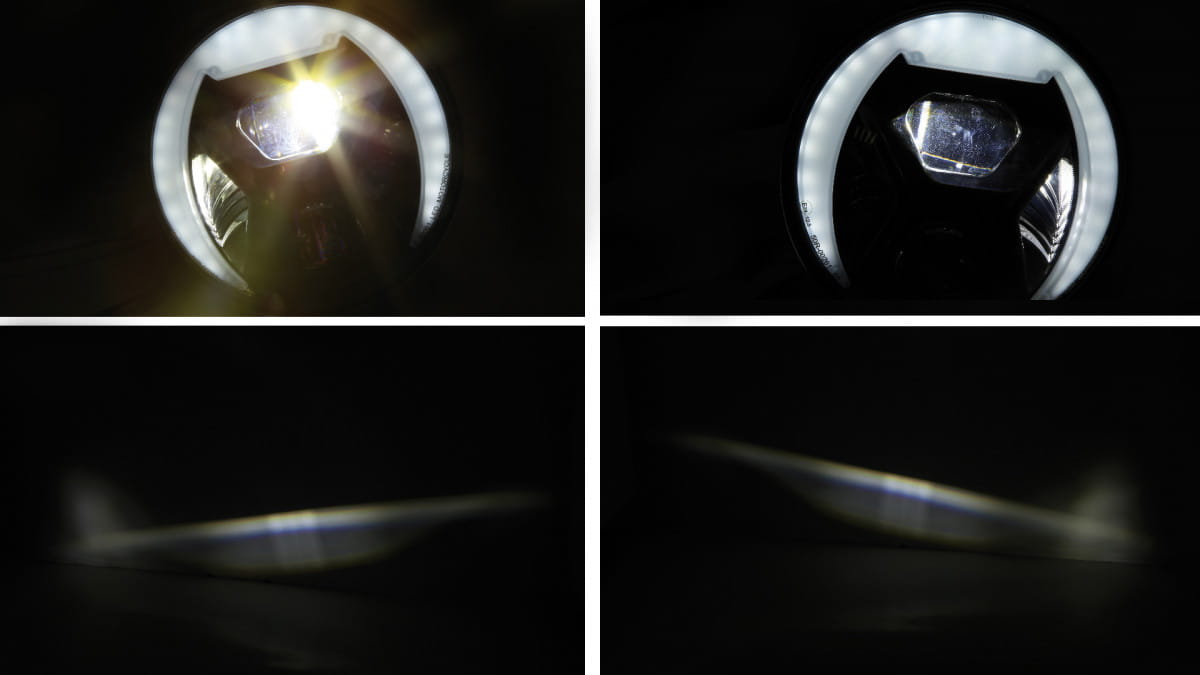

- Dostosowuje strumień światła do pochylenia motocykla (reflektor adaptacyjny)

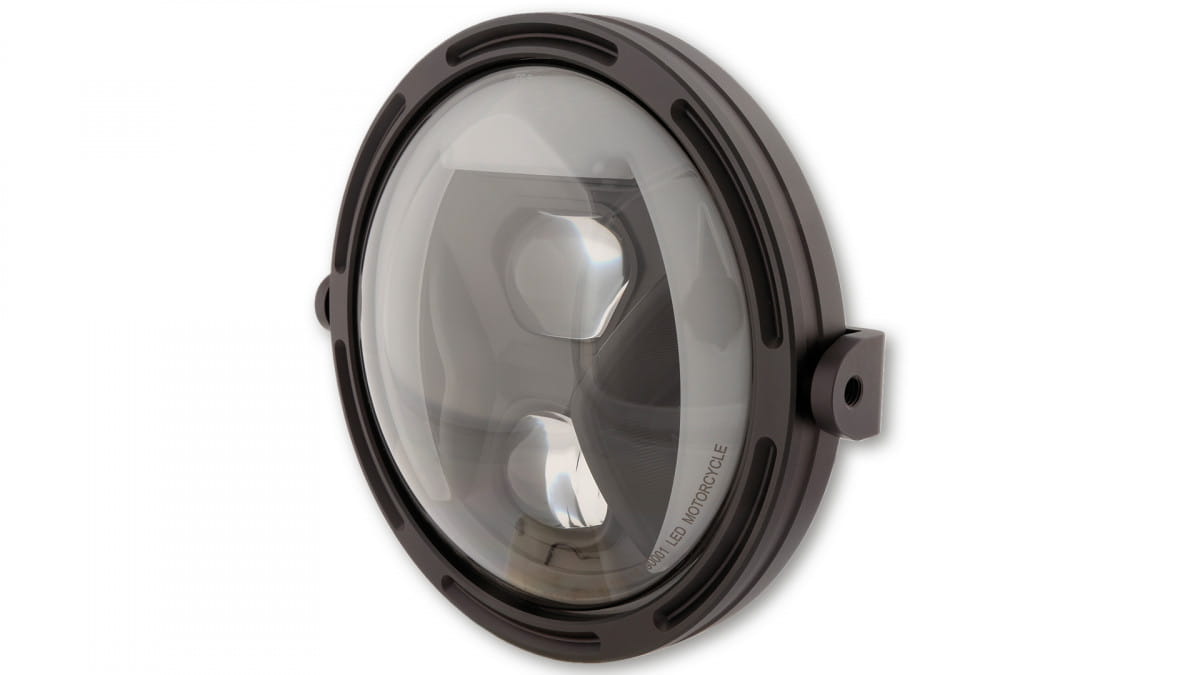

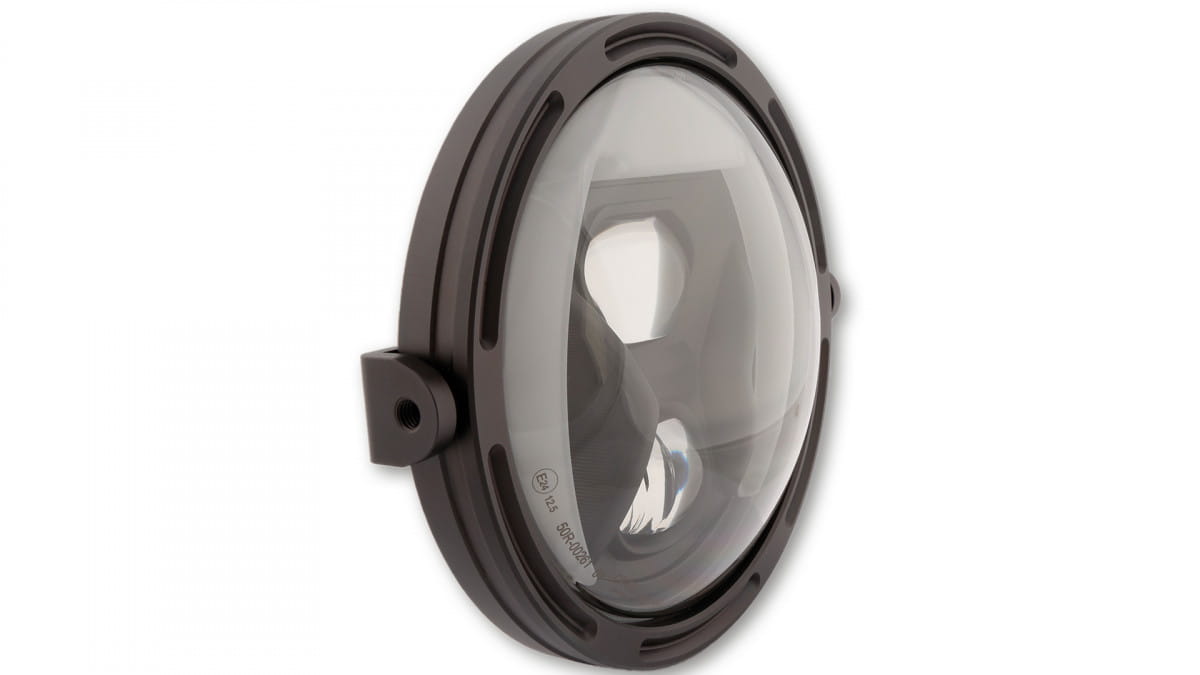

- Okrągły, 7-calowy reflektor z pierścieniem mocującym CNC i zestawem montażowym
- Mocowanie BEZ obudowy reflektora
- Poprawia chłodzenie przetwornicy
- Wiele opcji instalacji
- Prosta instalacja
- Nowoczesny wygląd, stylowy i innowacyjny
- Chromowany odbłyśnik z czarną blendą
- Światła drogowe, mijania i postojowe
- Asymetryczny strumień świetlny
- homologacja EU

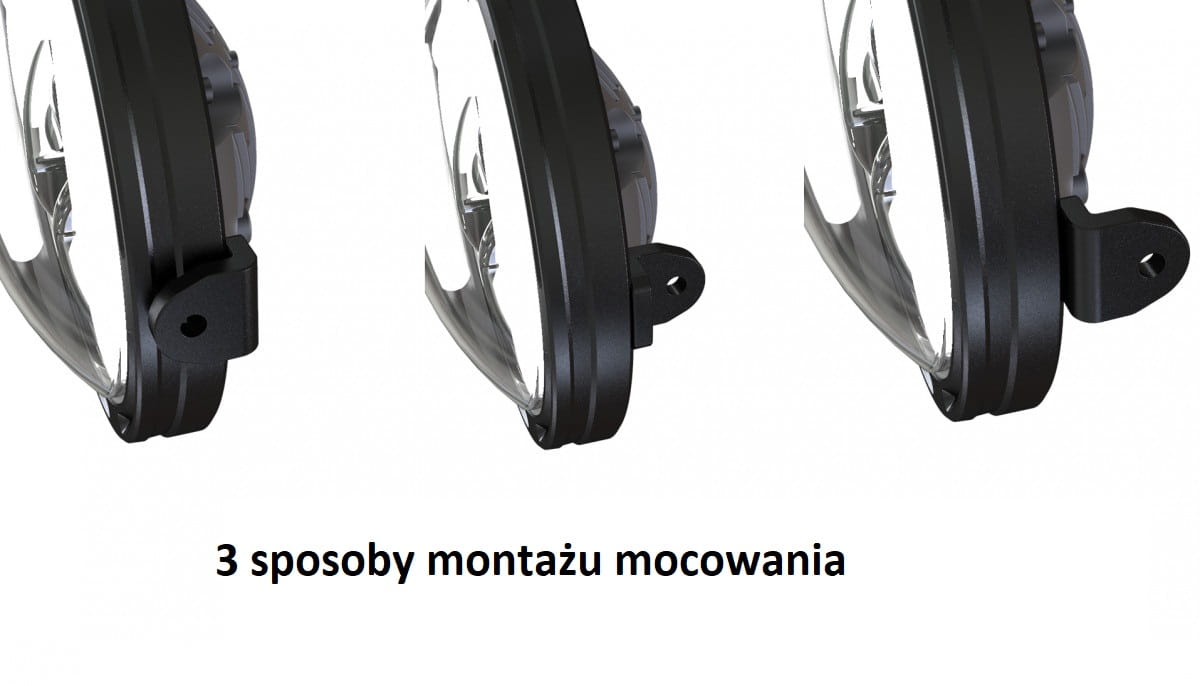

- 3 sposoby montażu mocowania

Nadaj swojemu motocyklowi niepowtarzalny styl! Niezwykły design i doskonała technologia serii reflektorów HIGHSIDER z pewnością sprawią, że Twój motocykl będzie "szałem na dzielni" ;) !

Wymiary:
Średnica = 200 mm
Średnica szkła  = 168 mm
Głębokość = 61 mm


Znajomości:
Czarny kabel = masa (-)
Czerwony przewód = światła mijania (+), pobór mocy: przy 12 V, 18 W, ok. 1132 lumenów
Biały kabel = światła drogowe (+), pobór mocy: przy 12 V, 30 W, ok. 1770 lumenów
Brązowy kabel = światło postojowe (+), pobór mocy: przy 12 V 0,7 W.

PRZED ZAKUPEM PROSIMY O KONTAKT W CELU POTWIERDZENIA DOSTĘPNOŚCI PRODUKTU I TERMINU REALIZACJI ZAMÓWIENIA.
------------------------------------------------------------------------------------------------------------------------------------------------------------

HIGHSIDER LED main headlight FRAME-R1 TYPE 8, E-approved
– Mounting WITHOUT housing, there goes a light. –

Every centimeter counts to place the headlight as close as possible between the two standpipes in the fork. REDUCED TO THE MAX was the premise behind the development of the innovative FRAME headlight mount. With the puristic aluminium ring it is possible for the first time to mount different LED headlight inserts free-standing on the motorcycle. By deliberately dispensing with a headlamp housing, an unbeatably narrow installation position is made possible and, in addition, better cooling of the LED unit is achieved.

On many motorcycles, the H4 or H7 lamp lights up, more or less twinkling away. Seeing better usually also means being seen better, which is not unimportant as summer turns to autumn and in times when cars are increasingly equipped with bright daytime running lights. Whether it’s to replace for better visibility at night, better visibility during the day, or to give your bike a nicer look, if you’re looking for a stylish and innovative power headlight, the FRAME-R1 LED main headlight is an excellent choice.

The installed LED daytime running light with position light in TYPE 8 is the perfect way to improve visibility during the day. The correct daytime running light switching on the vehicle is given without additional control boxes or switches, fulfils the regulations and simplifies the installation. An LED bend lighting headlamp for retrofitting to motorcycles heralds the next evolutionary stage in vehicle lighting. The HIGHSIDER LED headlight with cornering light, offers clear advantages over a conventional headlight. The static cornering light activates an additional light when the motorcycle is tilted. Due to the improved illumination you can see more of the curve and what is behind it. The driver can better adapt to the conditions and situations and is safer on the road. Two ellipsoidal lenses in combination with powerful LEDs turn night into day and thus combine a strong plus in safety with a polarizing unique look. The headlamp is available with a lower or side mounting.

Switching from daytime running light to low beam:
Press the high beam/light horn button briefly (approx. 1 second) and release the button as soon as the low beam is active. Then the low beam is permanently active.

Two different mounting systems are available for variable mounting of the spotlight.
– Side Mount, the conventional screw mounting on the side of the lamp holder
– Bottom Mount, mounting at the bottom for screwing on the triple clamp

The side-mount holders can be mounted in three positions, this compensates for 32mm in mounting depth and 46mm in width.

Features:
– Round 7 inch headlight with CNC mounting ring and mounting kit
– Mounts WITHOUT a headlight housing
– Improves cooling
– Many installation options
– Low profile installation
– Modern look, stylish-innovative
– Tinted glass
– Reflector black
– High beam, low beam, daytime running light, position light and cornering light function
– E-approved, nothing has to be registered

Give your bike your unmistakable style! The unusual design and perfect technology of the HIGHSIDER headlight series will definitely turn your bike into a highlight!

Dimensions:
A diameter = 200 mm
GA diameter = 169 mm
I diameter = 166.5 mm
T = 59 mm
R = 10 mm

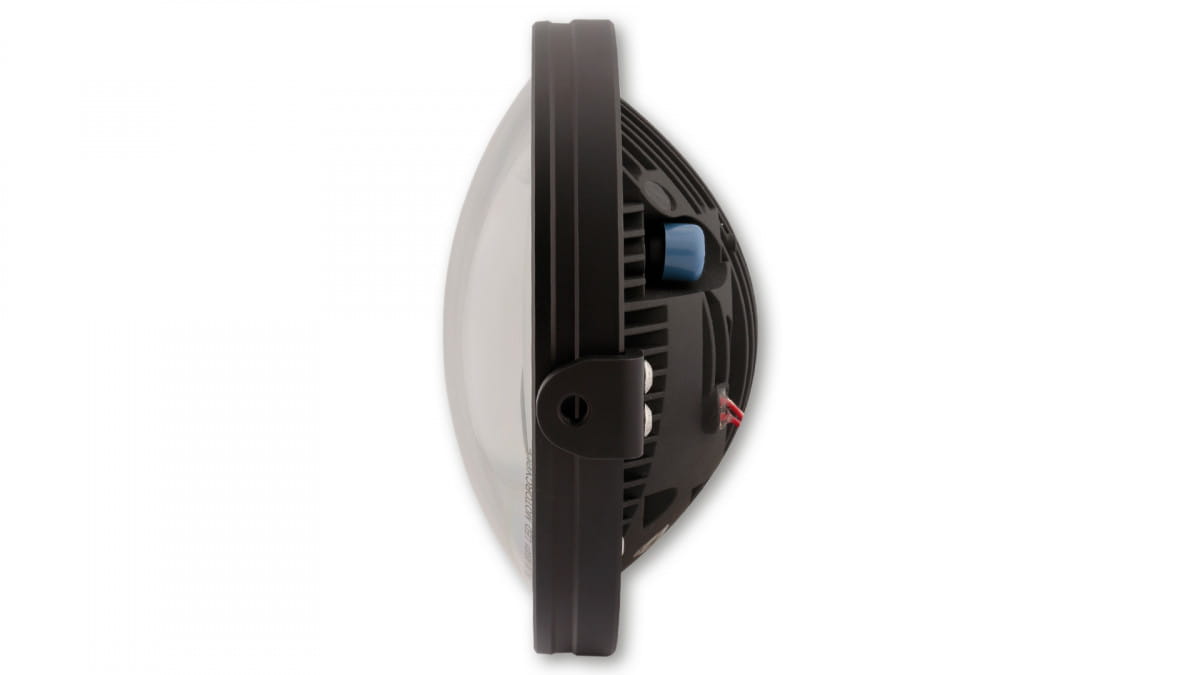

Total depth from glass to cooling fins: 99.10 mm

Connections:
Power input: 3 pin connector
Red wire = low beam (+)
White wire = high beam (+)
Black wire = ground (-)

Separate wire (round connector):
Red cable = LED position light / TFL (+)
