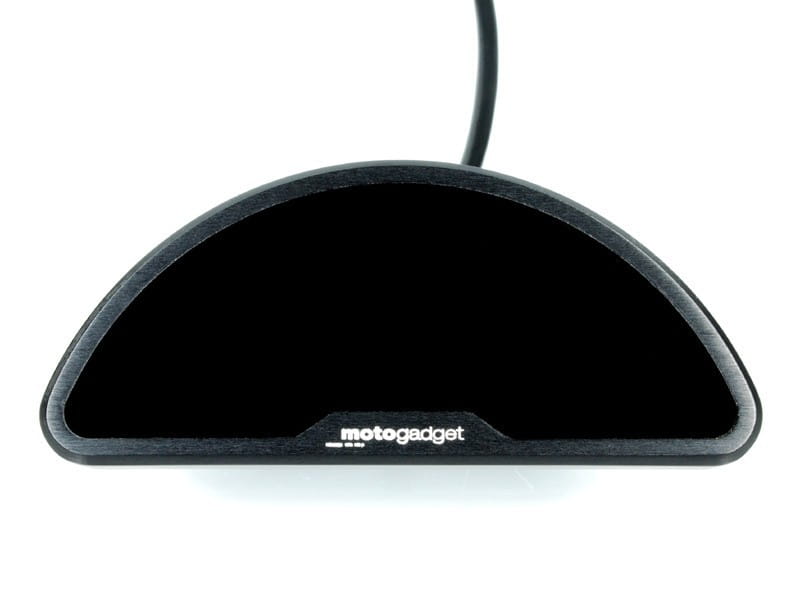

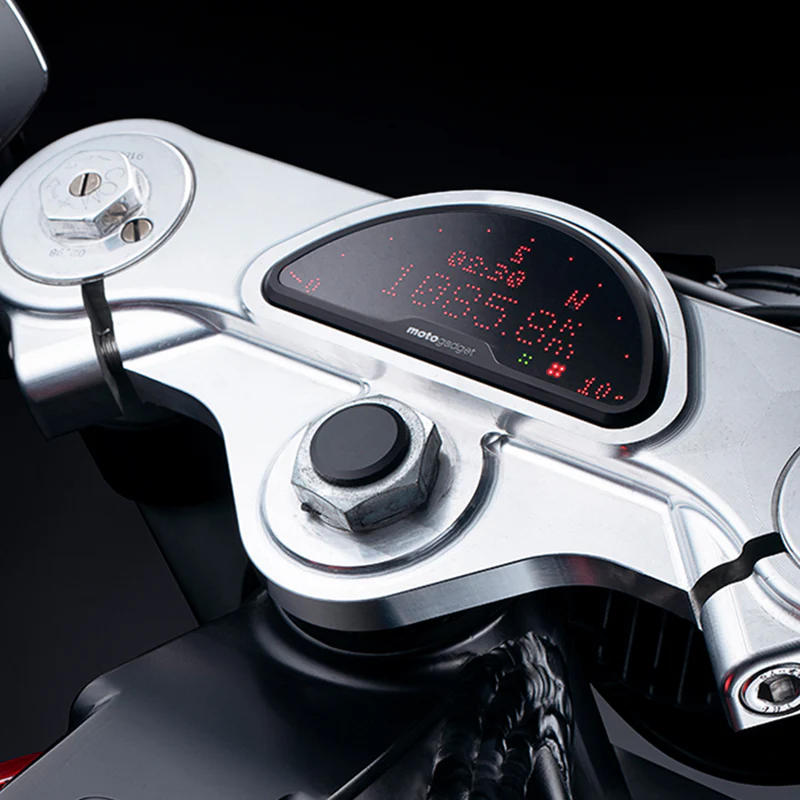

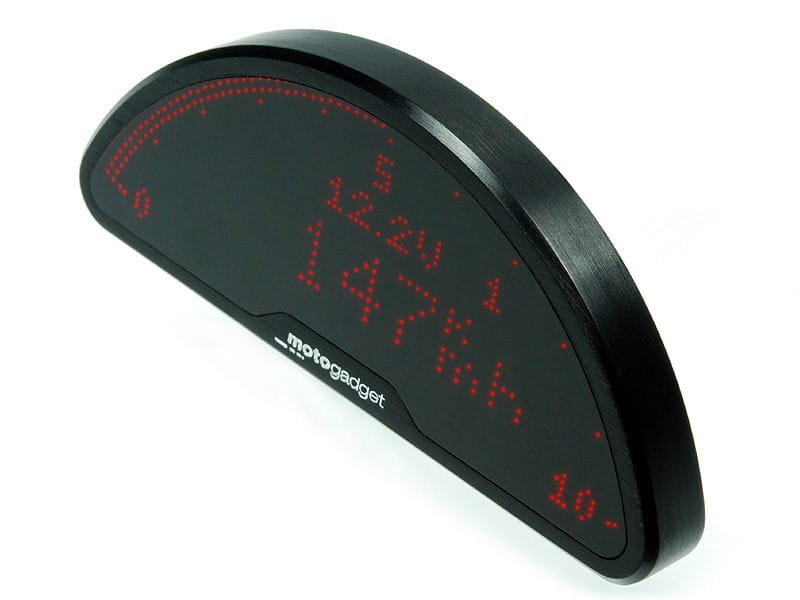

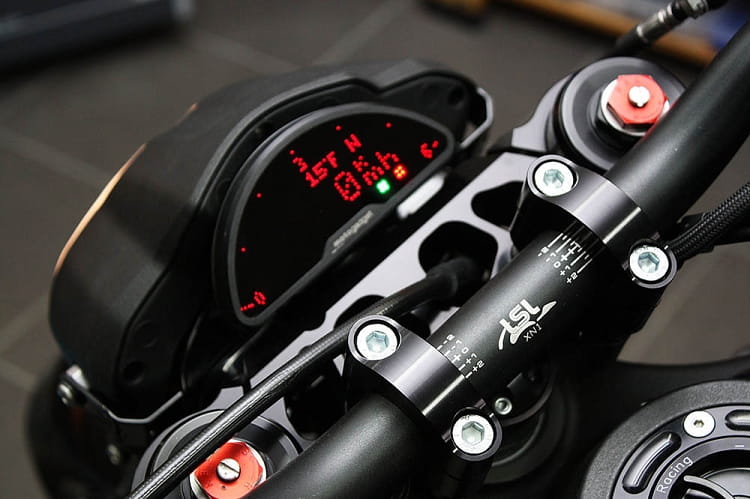

The motoscope pro impresses with its ultra-flat housing design.

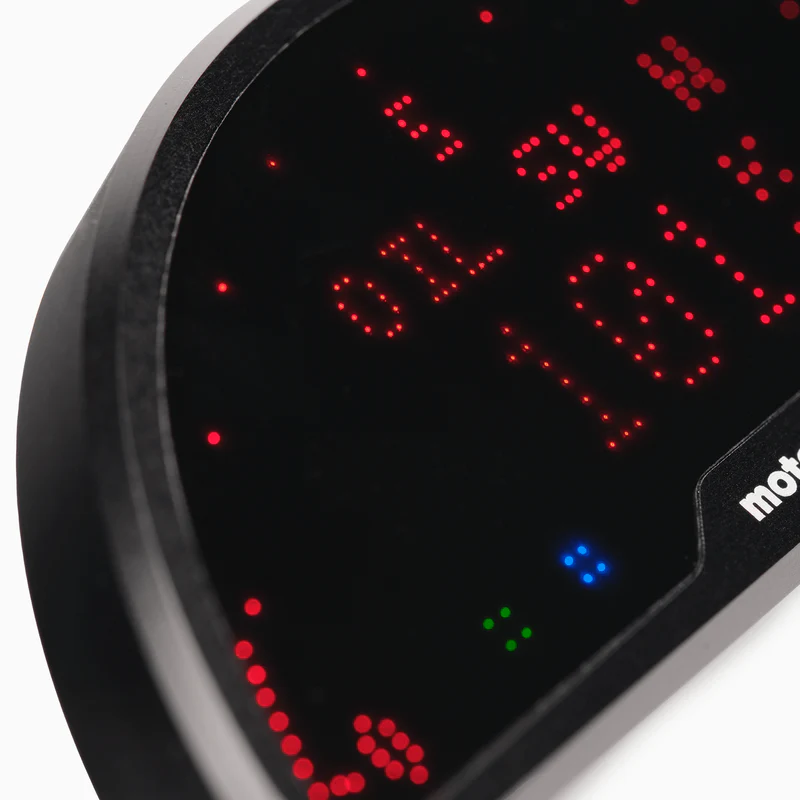

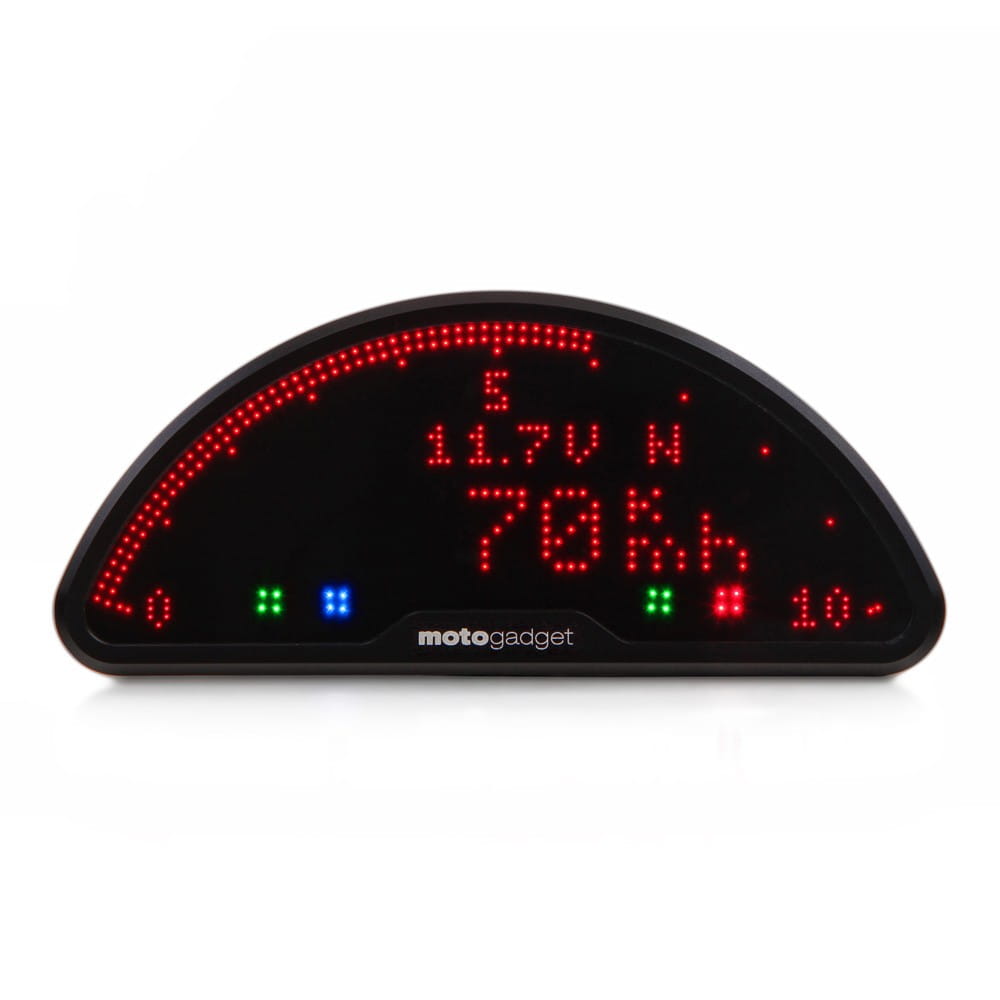

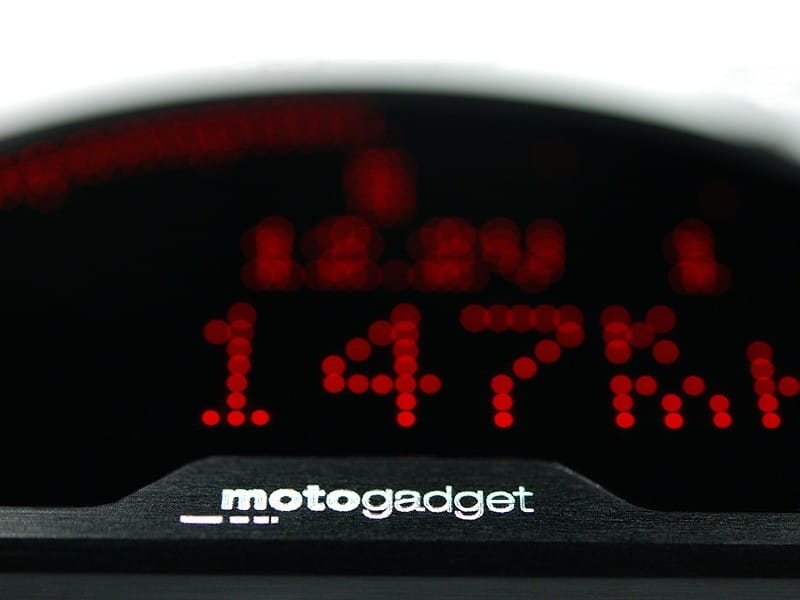

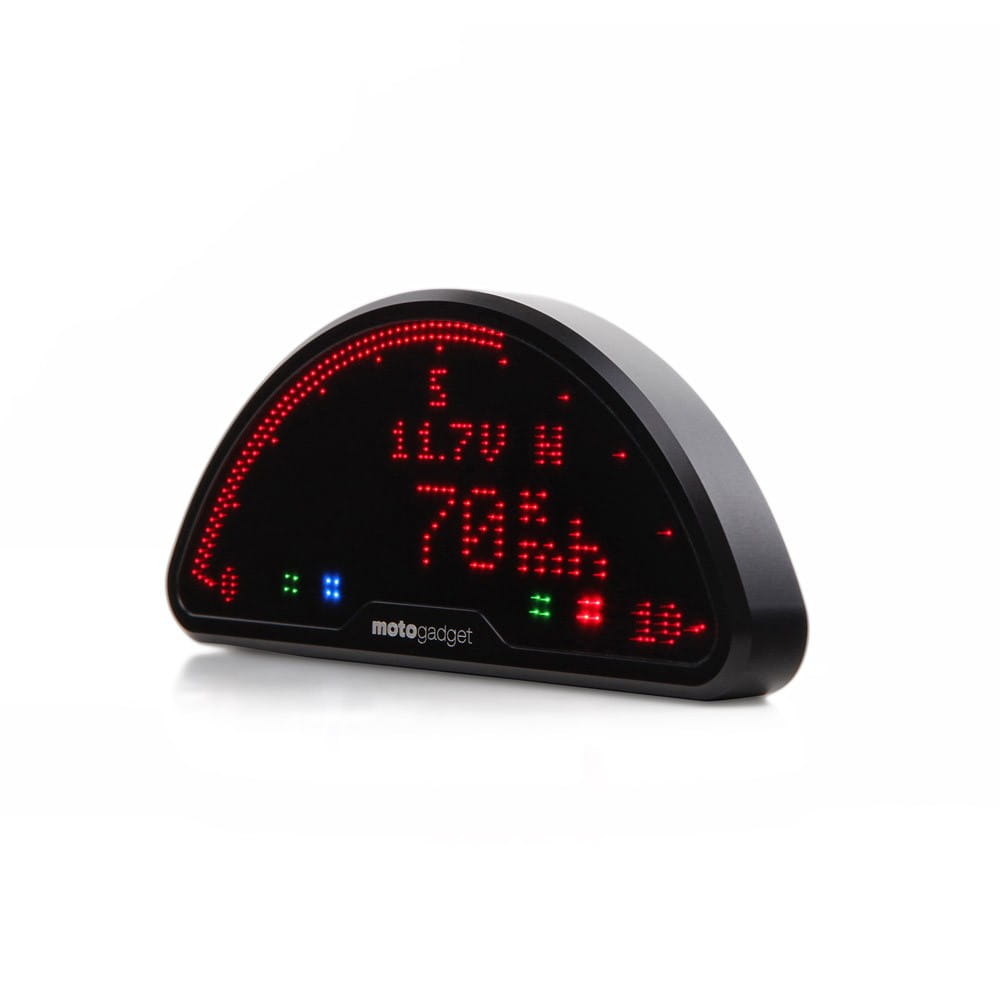

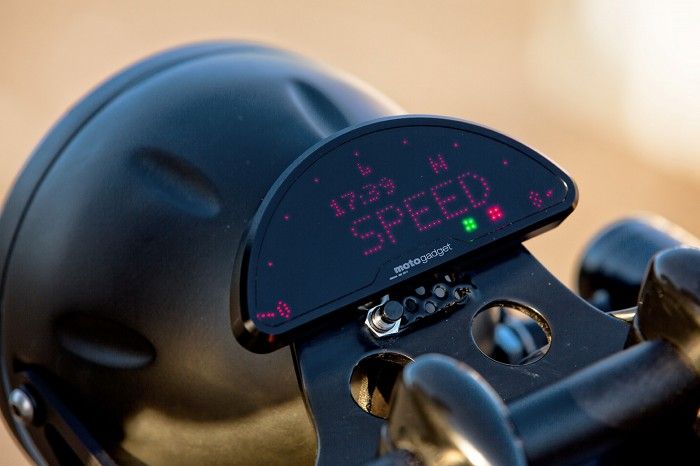

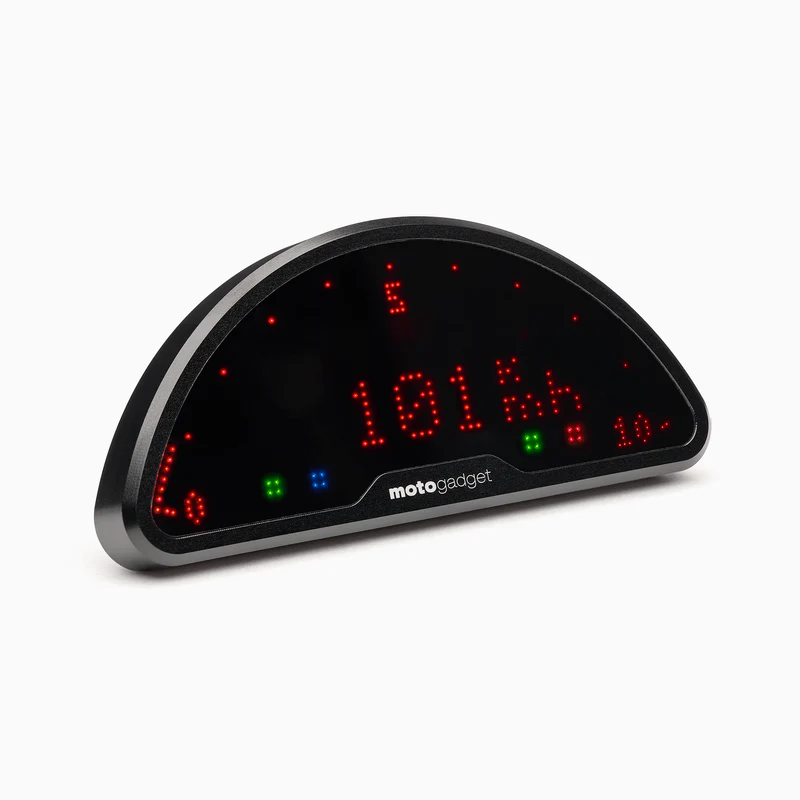

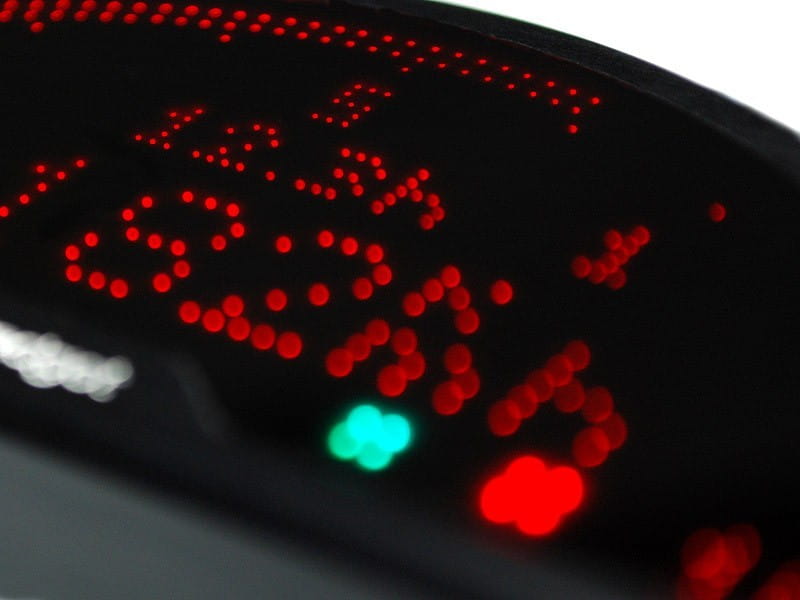

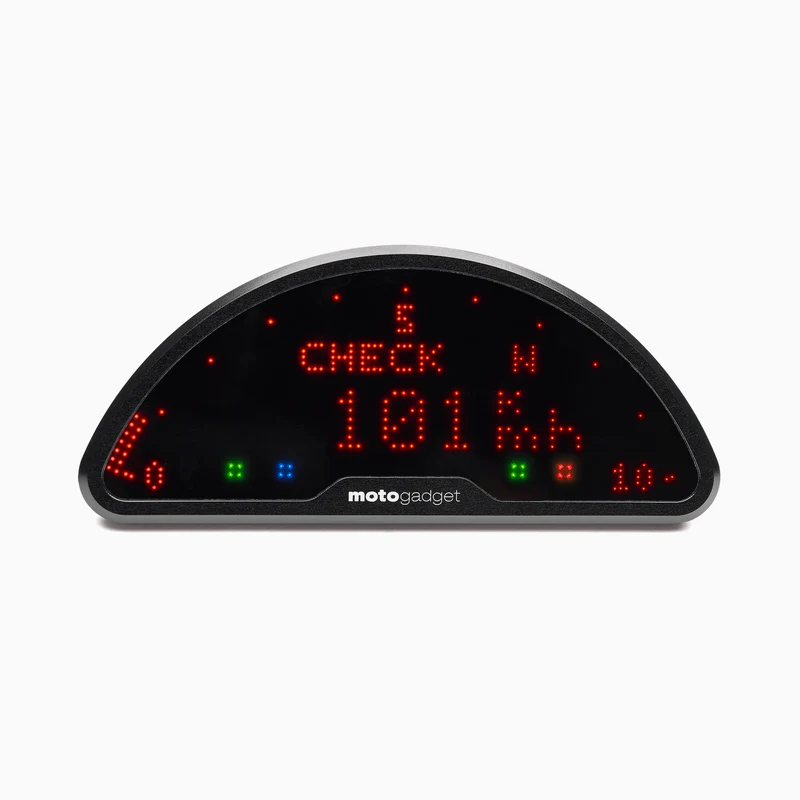

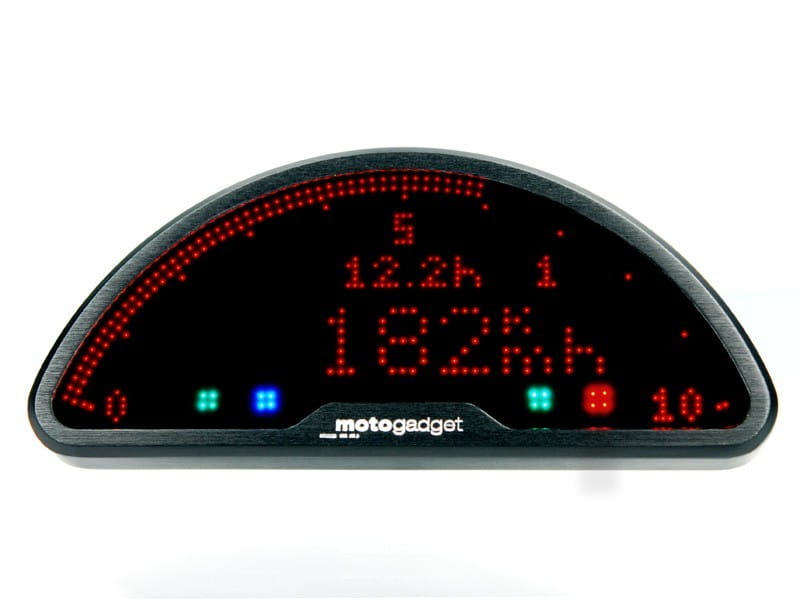

734 LEDs, controlled by a 16bit Risc processor, form a self-illuminating display matrix. The high light/dark contrast and automatic brightness control ensure optimum readability in direct sunlight and at night. An analog LED strip with drag pointer function displays the speed in a freely scalable manner. The main and secondary displays can be individually configured. The gear indicator is shown in another, separate display area.

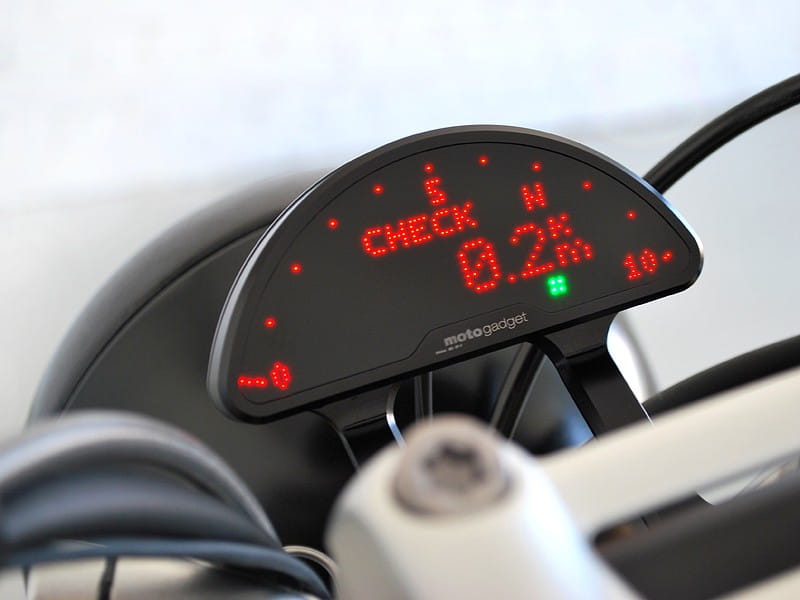

Four integrated indicator lights in combination with display text show all possible error messages clearly and quickly.

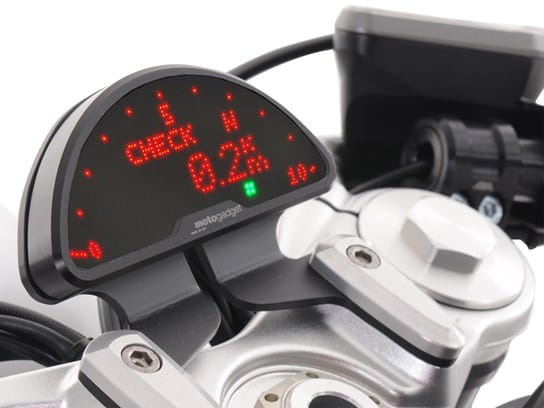

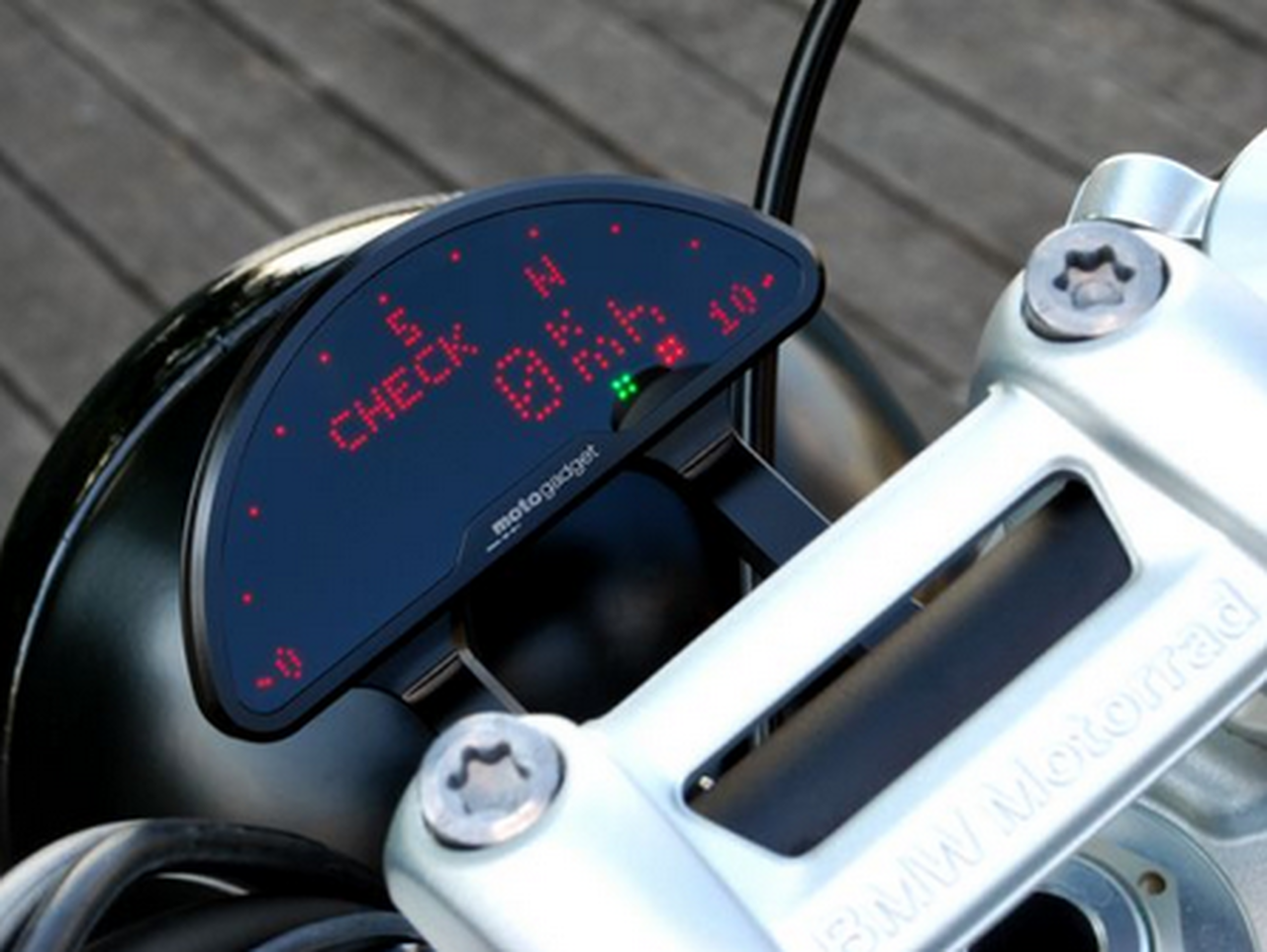

The motocope pro speaks the language of all modern vehicle BUS systems and is easy to install thanks to our Plug & Ride versions. With the supplied vehicle bracket and the included vehicle plug, it can be replaced with the original instrument in just a few minutes. Removal is possible at any time.

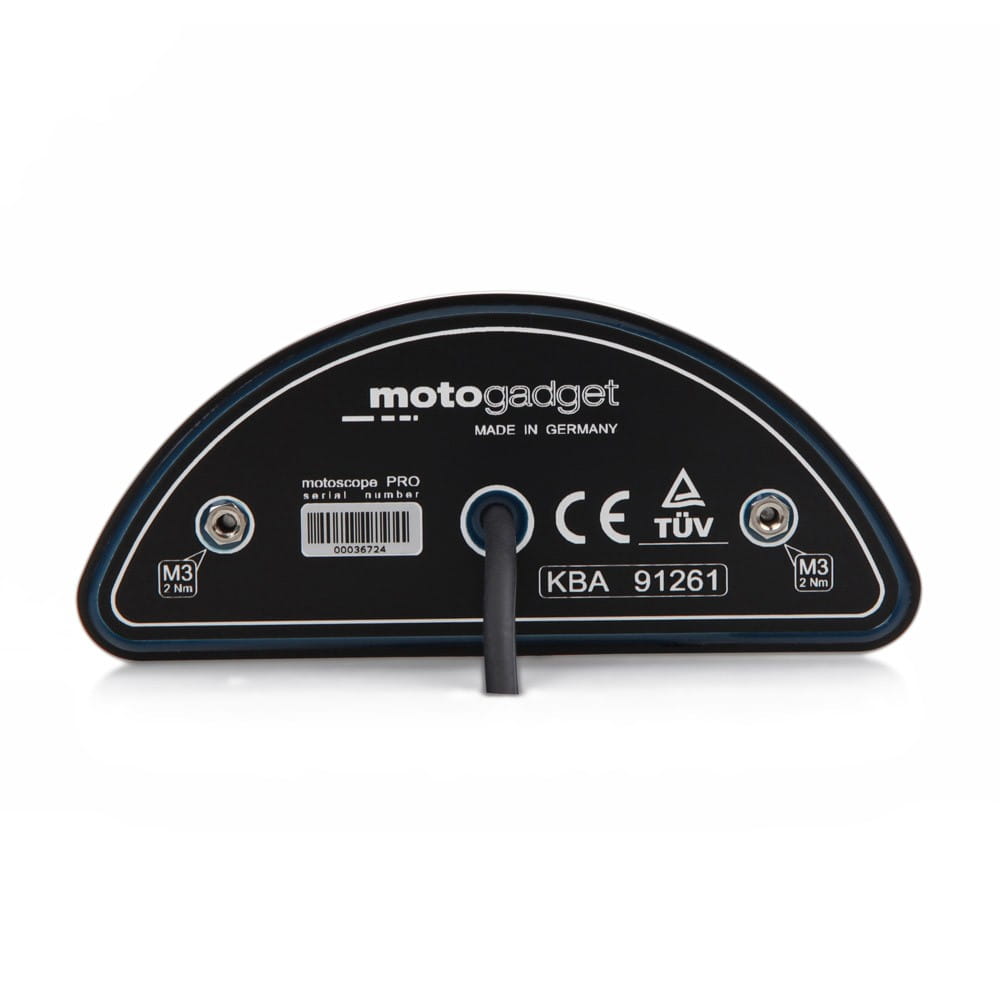

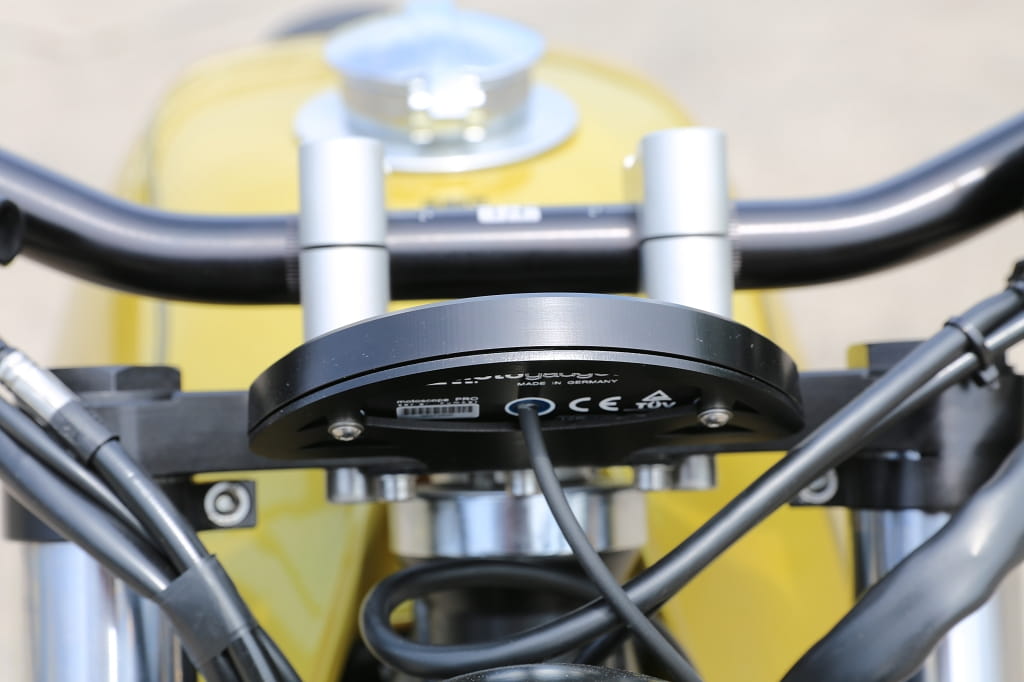

The aluminum housing is milled from the solid, anodized and is fastened by two
threaded bushes on the back. The instrument has
a general operating permit (ABE) and does not need to be registered.

Indicator lights and sensors are connected centrally via the breakout box which is available as an option.

TECHNICAL DATA:

Universal use on all carburetor models with a breakout box. Vehicle-specific Plug & Ride variants are available.

Indicator lights

High beam
Neutral
Universal warning light & text messages
Blinker left / right

Speed range

Drag indicator
adjustable: 0 - 6, 8, 10, 12, 14, 16, 18 krpm

Shift lightning

adjustable: 0 - 20 krpm

Display

Gear indicator
Speed 999 [km/h/mph]
Trip A 999.9 [km/mi]
Trip B 999.9 [km/mi]
Odometer 999999 [km/mi]
Speed 0-14,000 [rpm]
Oil temperature 0-200 [°C / °F]
Water temperature 0-200 [°C/°F]
Air temperature -20 - 100 [°C/°F]
Oil pressure 0 - 10.0 [bar/psi]
Operating hours counter 9999 [h]
Travel time [h:mm:ss]
clock
Time 0-100 km/h - 99.99 s
Acceleration 0 - 2.00 [G]
Average speed 999 [km/h/mph]
Maximum speed 999 [km/h/mph]
Maximum positive acceleration 0 - 2.00 [G]
Maximum negative acceleration 0 - -2.00 [G]
Maximum speed 20000 [rpm]
On-board voltage 9 - 15 [V]
Fuel gauge 0 - 100 [%]

Configurable warning messages

Oil temperature
Water temperature
On-board voltage
Air temperature
Oil pressure
Tank capacity
Service Interwall
Speed warning (gearshift flash)

Technical data

Length/width/depth: 109mm / 47mm / 11mm
Weight with cable: approx. 100g
Mounting: 2 x M3 threaded bush
Current consumption during operation: max 200 mA
Current consumption in idle state: 400µA
Operating voltage: 9 V - 18 V
Operating temperature: -20°... +80°C

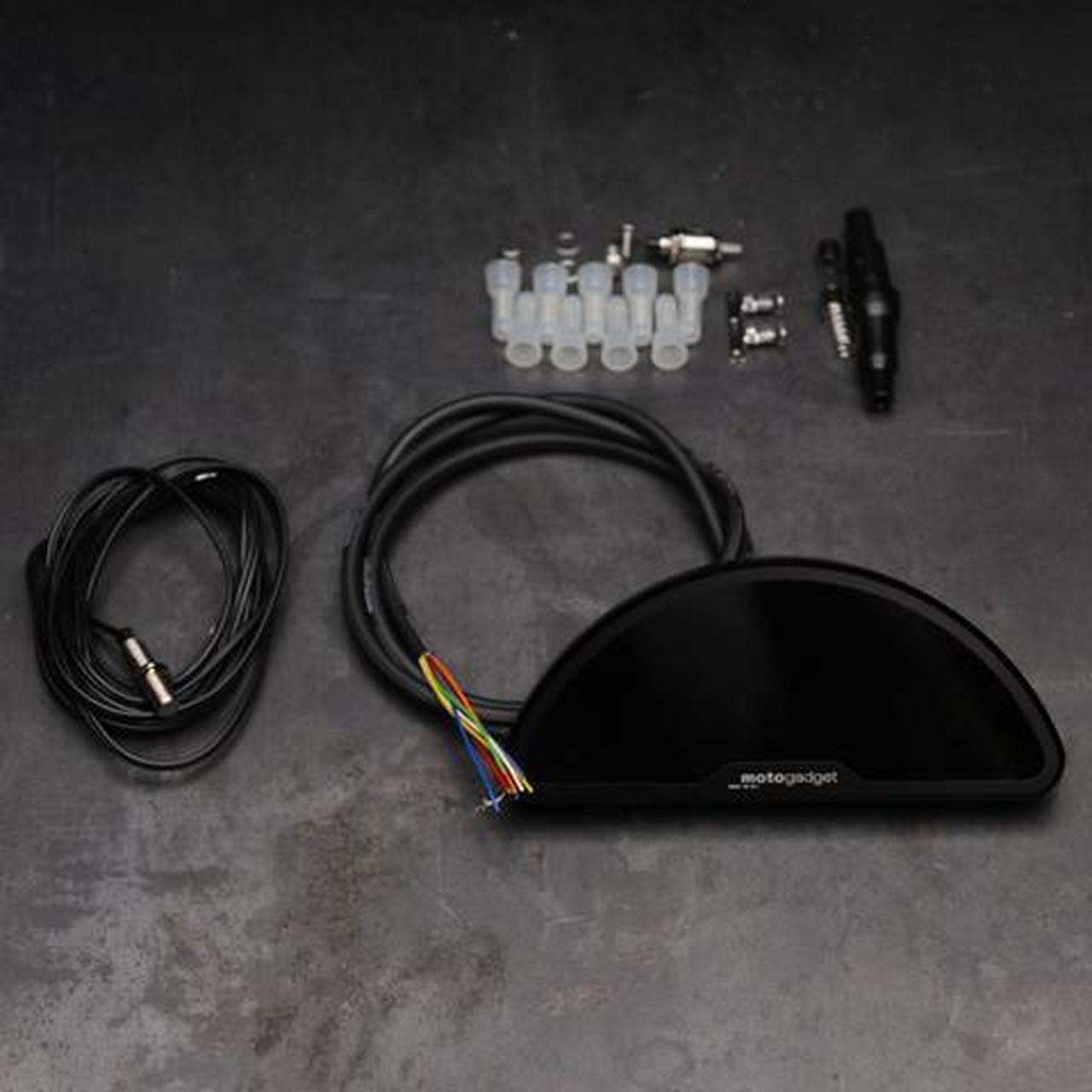

SCOPE OF DELIVERY:

Instrument with 75cm connection cable
Menu button
Cable fuse
9 Wire end ferrules
Speedometer sensor (M5, stainless steel, IP 68) with 150cm connection cable
2 neodymium magnets
2 M3 mounting screws with washer
QR code for mounting and operating instructions

Order separately (in accessories category)

Breakout box (connection of indicator lights and sensors)
Universal retaining plate
High-quality push-button
Oil pressure sensor
Oil temperature sensor
Water temperature sensor
Air temperature sensor
