3w1 kierunkowskazy HIGHSIDER LED ARC Turn Signals with taillights
Opis
3w1 LEDOWE KIERUNKOWSKAZY + ŚWIATŁO TYLNE+ STOP
FIRMY: HIGHSIDER
MODEL: PEN HEAD DOUBLE
OBUDOWA: CHROMOWANA-ALUMINIOWA
SOCZEWKA: SMOKE/PRZYDYMIONA
MONTAŻ: PRZÓD MOTOCYKLA
Seria świateł tylnych wraz z kierunkowskazami firmy HIGHSIDER zapewnia bezpieczeństwo, którego potrzebujesz i pożądany wygląd — niezależnie od tego, czy jest to cruiser, cafe racer czy inny custom.

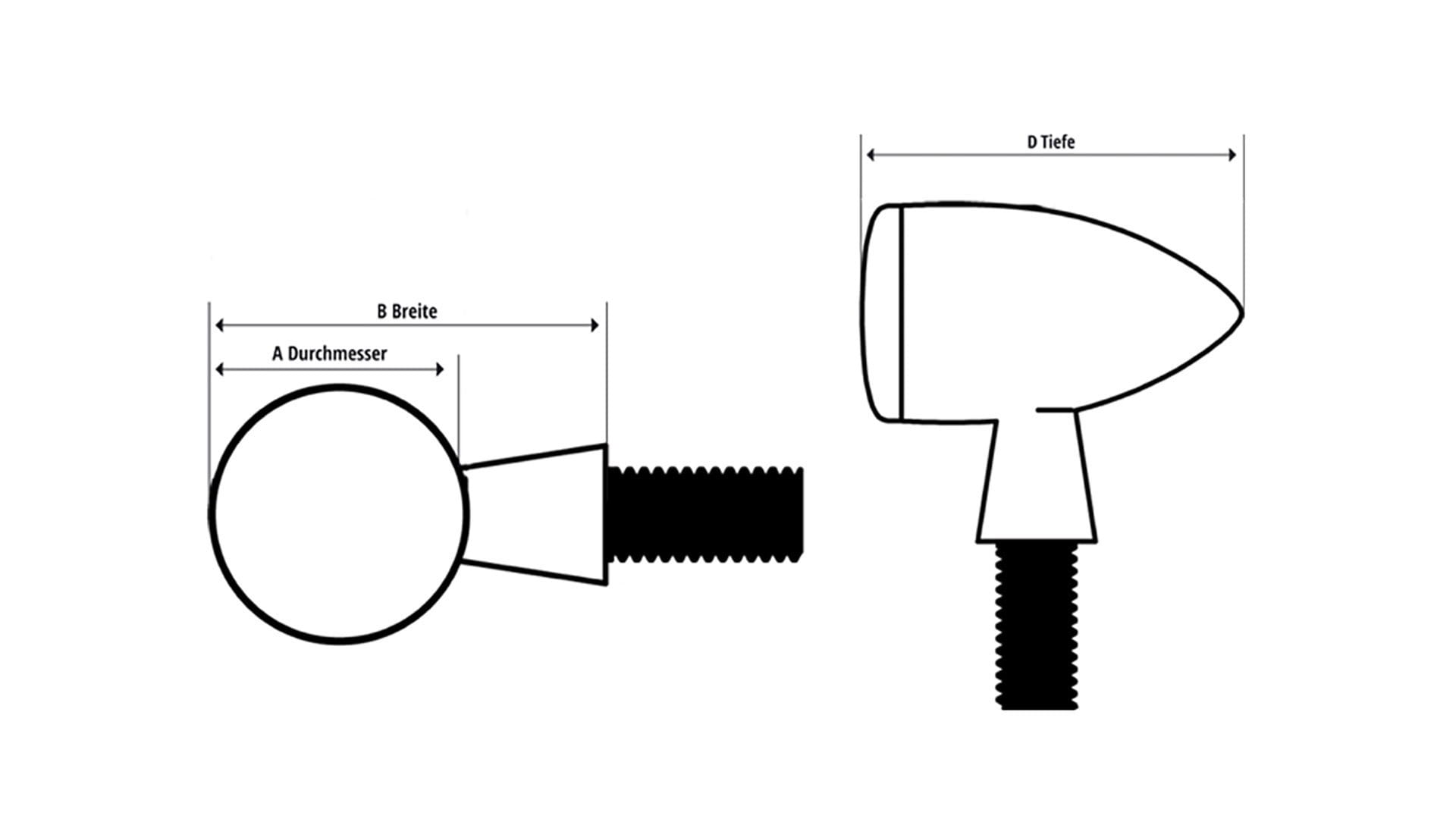

WYMIARY:
- A: 65mm
- C: 22mm
- D: 20mm
- Śruba gwintowana M8 x 1,25 mm, długość: ok. 20 mm
PODŁĄCZENIE:
- Czarny kabel = uziemienie (-)
- Biały kabel = migacz (+)
- Żółty kabel = światło tylne (+)
- Czerwony kabel = światło hamowania (+)
ZAKRES DOSTAWY:
- 1 para
PRZED ZAKUPEM PROSIMY O KONTAKT W CELU SPRAWDZENIA DOSTĘPNOŚCI WYBRANEGO PRZEZ PAŃSTWA PRODUKTU I TERMINU DOSTAWY.
----------------------------------------------------------------------------------------------------------------------------------------------------
HIGHSIDER LED tail light, brake light, turn signal ARC
LED tail light, brake light, turn signal unit in a chrome plated, high quality aluminum housing, narrow and tapered outward shape with clear glass, or in a black housing with tinted glass, E-marked for rear mounting.
The best comes at the end the HIGHSIDER taillight and taillight/indicator series give you the security you need and the look you want whether cruiser, athlete or scooter.
Measures:
A: 65 mm
C: 22 mm
D: 20 mm
Threaded bolts: M8 x 1.25 mm, length approx. 20 mm
Connections:
Black cable = Ground (-)
White cable= Indicators (+)
Yellow cable = Rear light (+)
Red cable = Brake light (+)
Scope of supply: 1 pair
Notes:
Application location: Only for rear
Scope of supply: 1 pair
Notes:
Application location: Only for rear
Notes: Only for rear
